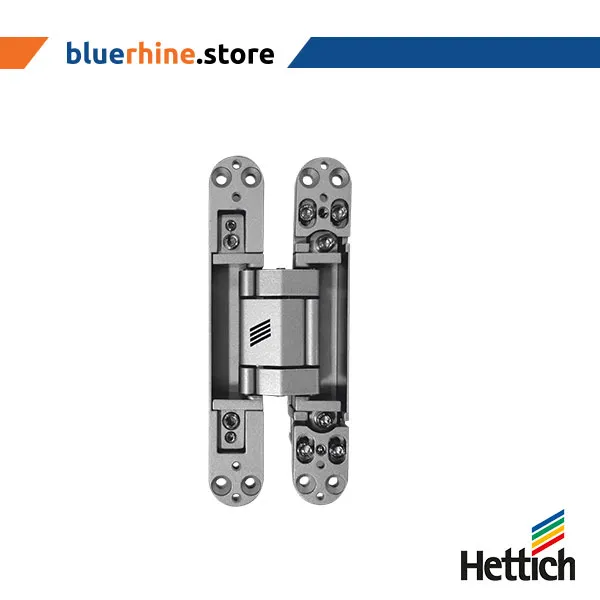

Hettich Concealed Hinge(HBC-25-1440/150Z-9228474) Silver painted with 3D adjustable-Load Capacity 40 Kgs/2 Pcs

• Length (C) : 150 MM
• Material Thickness (G) : 6.5 MM
• Loading Capacity: 40 kg/pair (Max. Width-1250 MM, Max. Height-3000 MM)
• Maximum Opening angle: 180°
• Minimum Door Thickness: 35 MM
• Lock case: 3-D Adjustable Range: +/- 3 MM Up and Down, +/- 2 MM Left and Right
• +/- 1 MM Front and back
• Door Types: Unrebated security * Left / Right useable
• Door Material: Wooden Door * Frame types: Wood
• Door Material: Wooden Door * Frame types: Wood
• Material / Finish : Stainless Steel / Satin
